BW 5.x and BW 6.x and BE projects 5.x and below are supported. Choose the appropriate page. You can upload a zip file which contains one or more BW/BE projects or EAR files

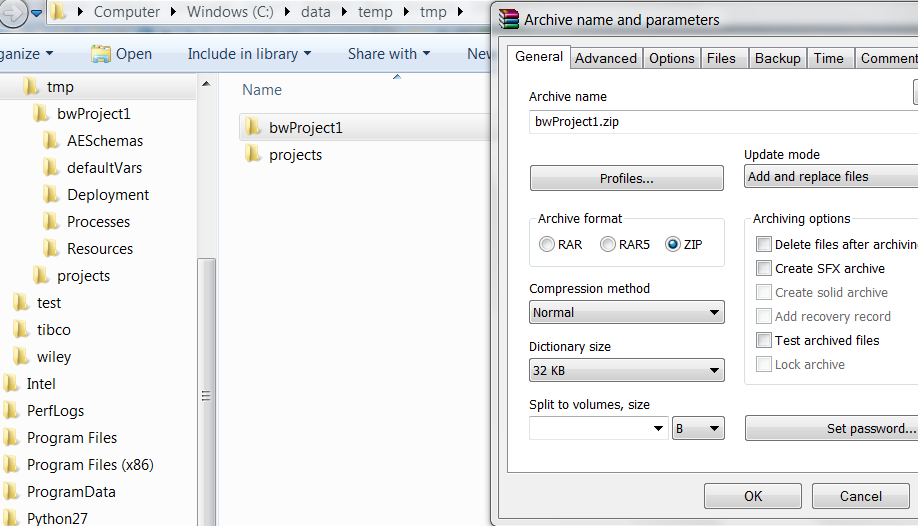

For uploading single BW/BE project, zip the root folder of the project as shown below. For BW6, make sure, you zip the module folder, or export the BW6 project using File --> Export -->Studio Projects to Archive and use the exported Zip file.

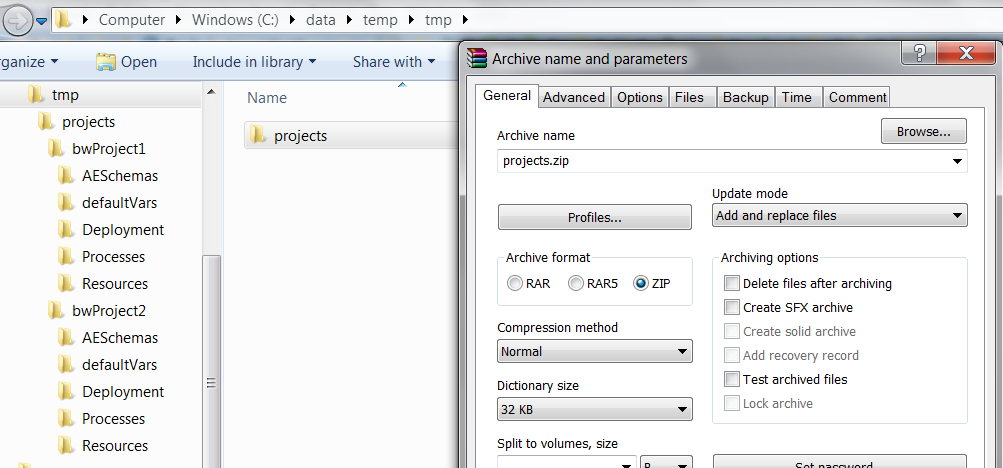

For uploading multiple BW/BE projects, zip the parent folder that contains multiple BW/BE projects as shown below.
For uploading single EAR file, upload the EAR file directly.

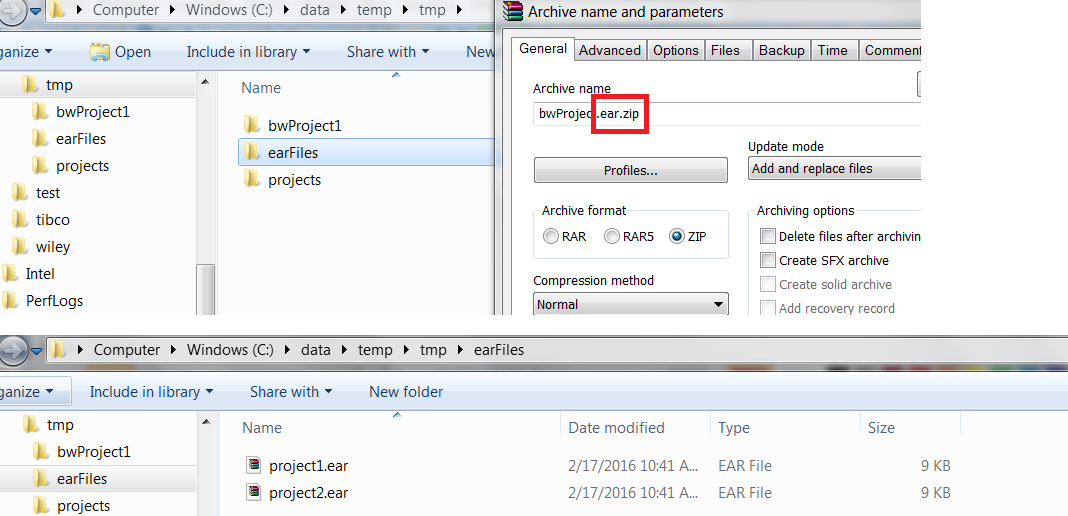

For uploading multiple EAR files, zip the parent folder that contains multiple EAR files as shown below. Name the file with the extension .ear.zip
Choose input format, output format as Excel or PDF and click on Generate Report
Enterprise On-premise version
BW Code Scanner and BE Code Scanner require Java7 or above to function. BCS requires a fair amount of memory to operate well. Smaller installations should start around 256MB-1GB.
Alternatively, if you have a servlet container that supports Servlet 2.4/JSP 2.0, such as Glassfish v2, Tomcat 5 (or any later versions), then you can run them as services, and deploy bwcodescanner.war / becodescanner.war as you would any other war file.
For Tomcat, just drop bwcodescanner.war in webapps folder and start tomcat instance.
For operational instructions, see the documentation above for Cloud version.
What is scanned for BW?
All Process definitions
Connections for BW palettes that ship with default BW. MQ plugin connections included. Additional plugins support is coming soon
What is scanned for BE?
All Rules, Rule Functions, Concepts, Events, Channels and CDD files
